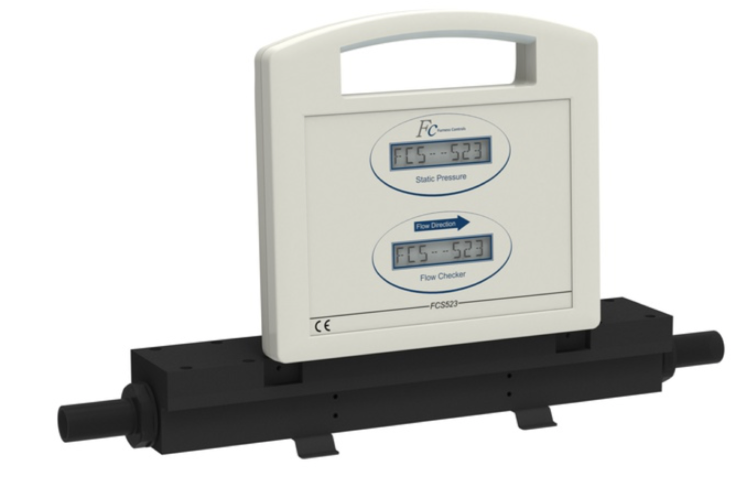

產品名稱：Dual Flow and Pressure Checker (FCS523) 雙流量和壓力檢測器

Key Features

l  Accurate static pressure and flow measurement over a wide range

l  Selectable engineering / flow units

l  Digital display with electronic filtering available

l  USB-B serial output for data logging

l  Battery or PSU powered for flexibility of use

l  在很寬的范圍內精確測量靜壓和流量

l  可選擇的工程/流量單位

l  數字顯示，帶電子過濾功能

l  USB-B串行輸出，用于數據記錄

l  電池或PSU供電，使用靈活

The FCS523 negates the need for a separate flow meter and pressure / vacuum gauge, reducing footprint and simplifying the pneumatic circuit as the pressure / vacuum sensor is internally connected to the flow element to measure the static pressure of the test.

FCS523無需單獨的流量計和壓力/真空計，減少占地面積并簡化氣動回路，因為壓力/真空傳感器內部連接到流量元件以測量測試的靜壓



The FCS523 reduces uncertainty due to differing measurement interpretation between operators, or due to viewing parallax. The device's portability offers flexibility for scenarios where a product must be tested before being passed to production, and provides confidence that the same device has been used for both R&D and production measurements. Other benefits of the FCS523 include reduced ongoing calibration and maintenance costs compared to multi-device setups.

FCS523降低了由于操作員之間的不同測量解釋或觀察視差造成的不確定性。該設備的便攜性為產品在傳遞到生產之前必須進行測試的場景提供了靈活性，并確保相同的設備已用于研發和生產測量。與多器件設置相比，FCS523的其他優點包括降低了持續的校準和維護成本。



The flow and pressure sensor has a dedicated USB-B output which can be used to record measurements at defined intervals, or at externally triggered events, such as end of test. The USB port can also be used for changing parameters such as display damping, volumetric flow or pressure units, and alarm points.

流量和壓力傳感器具有專用的USB-B輸出，可用于以定義的間隔或外部觸發的事件（例如測試結束）記錄測量值。USB端口還可用于更改顯示阻尼，體積流量或壓力單位和報警點等參數。
