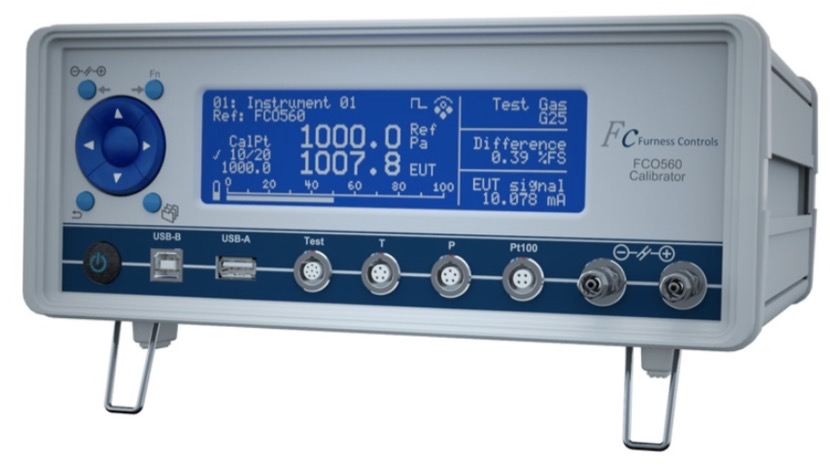

產品名稱：Portable Calibrator and Precision Manometer (FCO560) 便攜式校準器和精密壓力計

Key Features

l  Differential pressure measurement down to 0.01 Pa.

l  Automatic differential pressure generator

l  Measure: Differential pressure, flow, temperature & pressure

l  Data-logging facility with USB and RS232C output

l  Detailed and easily-readable graphical display

Used extensively in manufacturing as well as educational and research establishments around the world, the FCO560 is a multi-function low differential pressure instrument with two modes of operation. Calibration mode fulfils the calibration requirements for low differential pressure transmitters, transducers, pressure switches and flow devices. Measurement mode provides a versatile precision micro-manometer that may be combined with laminar flow elements or pitot tubes for measurement of velocity, volumetric flow and mass flow.

l  差壓測量低至0.01 Pa。

l  自動差壓發生器

l  測量：壓差，流量，溫度和壓力

l  帶USB和RS232C輸出的數據記錄功能

l  詳細且易于閱讀的圖形顯示

FCO560廣泛應用于世界各地的制造業以及教育和研究機構，是一種多功能低壓差儀器，具有兩種操作模式。校準模式滿足低壓差變送器，傳感器，壓力開關和流量設備的校準要求。測量模式提供了多功能精密微壓力計，可與層流元件或皮托管結合使用，用于測量速度，體積流量和質量流量。

Pressure & Flow Calibrator

In calibration mode the FCO560's multiple sensor configurations allow different external references to be used quickly and simply. When combined with laminar flow elements, the FCO560 may be used as a flow calibrator covering flows from less than 1 ml/min to over 30000 l/min. An external pressure sensor may also be used as a reference for calibrating pressures much higher than the FCO560’s differential pressure range.

When used for site calibrations, the FCO560 may be preconfigured with information for up to 99 different instruments to be calibrated. For bench use, these configurations are useful for rapidly changing between commonly used setups.

Additional features:

·             Pressure control stability <0.003 % FS

·             Simultaneous display of applied pressure/flow and EUT values

·             Voltage and current inputs for EUT signal

·             4-20mA inputs for external temperature and pressure transducers

·             PT100 temperature sensor input

·             Internal absolute pressure sensor

·             Battery powered for portable calibration

壓力和流量校準器

在校準模式下，FCO560的多種傳感器配置允許快速簡單地使用不同的外部參考。當與層流元件結合使用時，FCO560可用作流量校準器，覆蓋流量從小于1毫升/分鐘到超過30000升/分鐘。外部壓力傳感器也可用作校準壓力的參考，遠高于FCO560的壓差范圍。

當用于現場校準時，FCO560可以預先配置有多達99種不同儀器的信息進行校準。對于工作臺使用，這些配置對于在常用設置之間快速切換非常有用。

附加功能：

•壓力控制穩定性<0.003％FS

•同時顯示施加的壓力/流量和EUT值

•EUT信號的電壓和電流輸入

•4-20mA輸入，用于外部溫度和壓力傳感器

•PT100溫度傳感器輸入

•內部絕對壓力傳感器

•電池供電，便于校準

Precision Manometer

The FCO560 is a versatile and highly-accurate flow and pressure measurement device, with an accuracy of greater than 0.1% of reading at pressures down to 1 Pa. The instrument is widely used in a variety of applications, such as fan manufacture and wind tunnel operation, and is able to automatically compensate for temperature and local pressure variations.

Additional features:

·             Atmospheric pressure compensation with internal sensor, external sensor, or preconfigured constant value

·             Flow readings as volume flow, mass flow, velocity, or power

·             Extensive list of pre-configured gases, as well as customisable density setting

·             Graphical output showing peak flow and trends

精密壓力計

FCO560是一種多功能，高精度的流量和壓力測量裝置，在壓力低至1 Pa時精度大于讀數的0.1％。該儀器廣泛應用于各種應用，如風機制造和風洞操作，并能夠自動補償溫度和局部壓力變化。

附加功能：

•內部傳感器，外部傳感器或預配置恒定值的大氣壓力補償

•流量讀數，如體積流量，質量流量，速度或功率

•廣泛的預配置氣體列表，以及可定制的密度設置

•圖形輸出顯示峰值流量和趨勢
