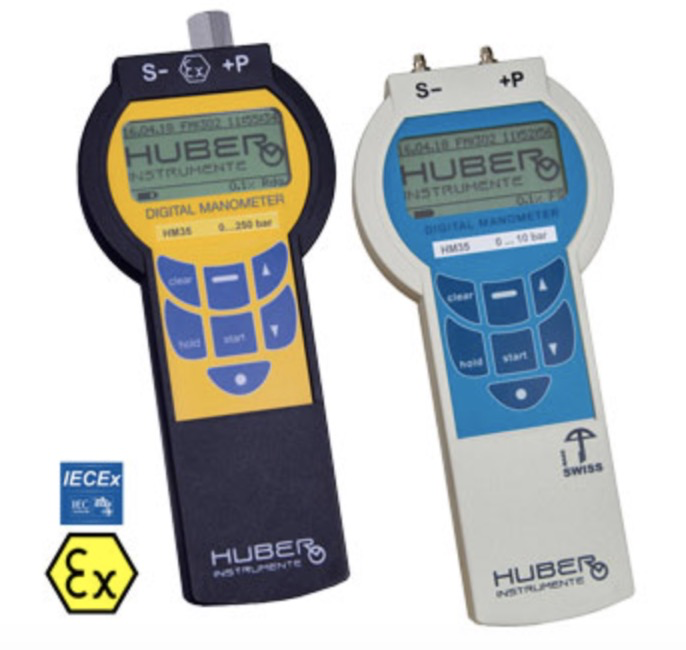

產品名稱：Digital Handheld Pressure Gauge (HM35/HM35 EX)

The most impressive feature of the HM35 and HM35 EX manometer is the versatile range of applications.

It allows measurements in the area of gauge-, differential- or absolute pressure.

l  The pressure measurements can be executed in either ovepressure or vacuum ranges.

l  Pressure ranges from vacuum up to 250 bar available

l  Symmetrical measuring ranges available

l  Accuracy classes in 0.2% / 0.1% / 0.05% F.S. selectable

l  Media-compatible devices available

l  Ex versions available

HM35和HM35 EX壓力計最令人印象深刻的功能是多種應用。

它允許在壓力，差壓或絕對壓力范圍內進行測量。

l  壓力測量可在超壓或真空范圍內進行。

l  壓力范圍從真空到250巴可用

l  可提供對稱測量范圍

l  精度等級為0.2％/ 0.1％/ 0.05％F.S。可選

l  可用媒體兼容設備

l  提供Ex版本

The EX-version meet the requirements for opearting in T3 (rechargeable batteries) and T4 (conventional batteries) temperature ranges.

l  Pressure change rate

l  MIN/MAX and average value

l  Illuminated display

l  Datalogger for up to 10000 measured values (interval is selectable)

EX版本符合T3（可充電電池）和T4（傳統電池）溫度范圍的操作要求。

l  壓力變化率

l  MIN/ MAX和平均值

l  發光顯示屏

l  數據記錄器最多10000個測量值（可選擇間隔）

Via the infrared interface (IR), all data of the pressure measurements, can be transferred directly to a PC.

l  Calibration software for Windows available

l  22 selectable measurement units

通過紅外接口（IR），壓力測量的所有數據可以直接傳輸到PC。

l  適用于Windows的校準軟件

l  22個可選測量單位

Various accessories available for the HM35 Handheld Pressure Gauges >

l  Hand operated pumps for pressure generation

l  Wall mounts

l  Leather cases

l  Various connectors, like M10x1, NPT 1/8″, 4/6MM…

l  Complete service cases

適用于HM35手持式壓力表的各種附件>

l  手動泵用于產生壓力

l  墻壁安裝

l  皮套

l  各種連接器，如M10x1，NPT 1/8“，4 / 6MM ......

l  完整的服務案例

Our pressure measurement sensors for the HM35 series are

l  Temperature compensated

l  Long term stable

Our HM35 series Handheld Pressure Gauges,
come with an internationally acknowledged SCS calibration certificate on delivery!

我們的HM35系列壓力測量傳感器是

l  溫度補償

l  長期穩定

我們的HM35系列手持式壓力表，在交付時附帶國際認可的SCS校準證書！

5Our flow elements and Pitot tubes are world beating in terms of accuracy and ease-of-use

Furness Controls manufacture a range of Pitot tubes and Laminar flow elements for a variety of applications.

The Pitot tubes conform to the classic Prandtl design, or are averaging types for industrial applications. The laminar flow elements offer extremely good turn-down as there is no requirement for the square root calculation.

我們的流量元件和皮托管在精度和易用性方面都處于世界領先地位

Furness Controls生產一系列皮托管和層流元件，適用于各種應用。

皮托管符合經典的普朗特設計，或者是工業應用的平均類型。層流元件提供非常好的調節，因為不需要平方根計算
